Flexible Thermoelectric Cooling
A large-area, solid-state cooling surface that bends to fit the body — delivering powerful direct cooling at low DC wattage, with no compressor, no refrigerant, and no added humidity.
Patent WO2023003772A1 · US 12,270,579 B2 →
Cooling that conforms
Conventional Peltier coolers are small and rigid, so they can't comfortably cover a large, curved area of the body. This device solves that with inter-component flexibility: an array of individual thermoelectric modules — each a conductive plate, a Peltier element, and a liquid-cooled heat sink — joined by an elastic material into one continuous, bendable body.
Protective spacers around each module absorb mechanical stress so the fragile elements and their bonds survive real-world use, like being leaned against as a backrest. Fluid is cycled through the heat sinks by either a pump-and-reservoir loop or a passive thermosiphon, carrying heat away efficiently so the contact surface stays cold.
Low-wattage & portable
Powerful cooling on a 12 V supply — runnable from a battery bank, solar panel, or a vehicle outlet, with less waste heat.
Dry & on-demand
No refrigerant, no prep time, and no added humidity. Operates instantly using room-temperature fluid.
Heats too
Reverse the polarity and the same surface warms — and can reclaim waste heat or pre-chill the reservoir.
Built into what you sit in
Chairs, sofas & beds
The flexible panel integrates directly into a backrest or seat, its smooth membrane forming part of the furniture surface. For sedentary work and home entertainment, it cools the person — not the whole room — targeting the back and hamstrings where blood flow is high, at a fraction of the energy and real-estate cost of air conditioning.

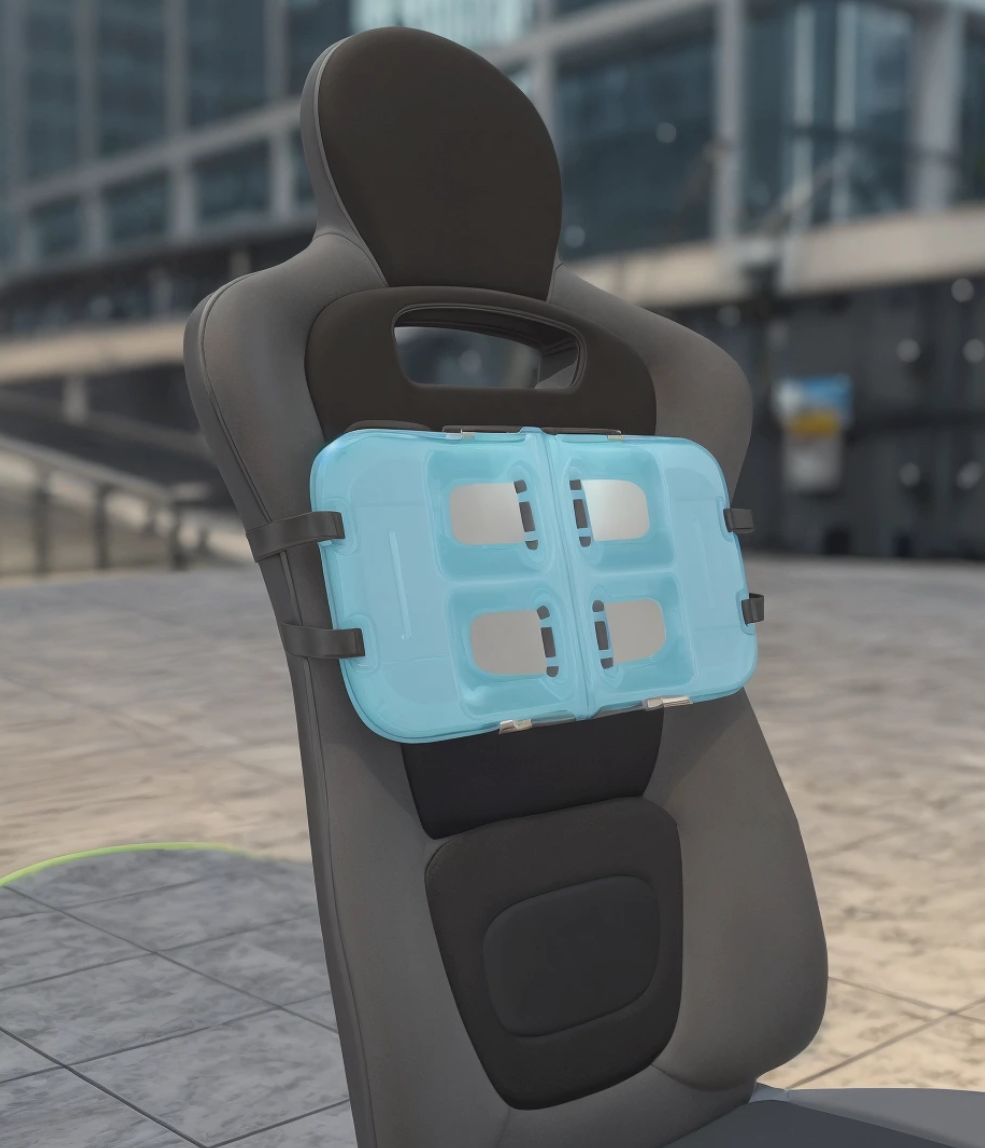

Vehicle seating
The membrane can serve as the contact surface of a vehicle seat, conforming to its curves. Running on the car's 12 V system, it cools occupants directly — and in some geographies and vehicle classes can supplement or replace cabin A/C, simplifying the engine bay and improving efficiency.
From bench to seat

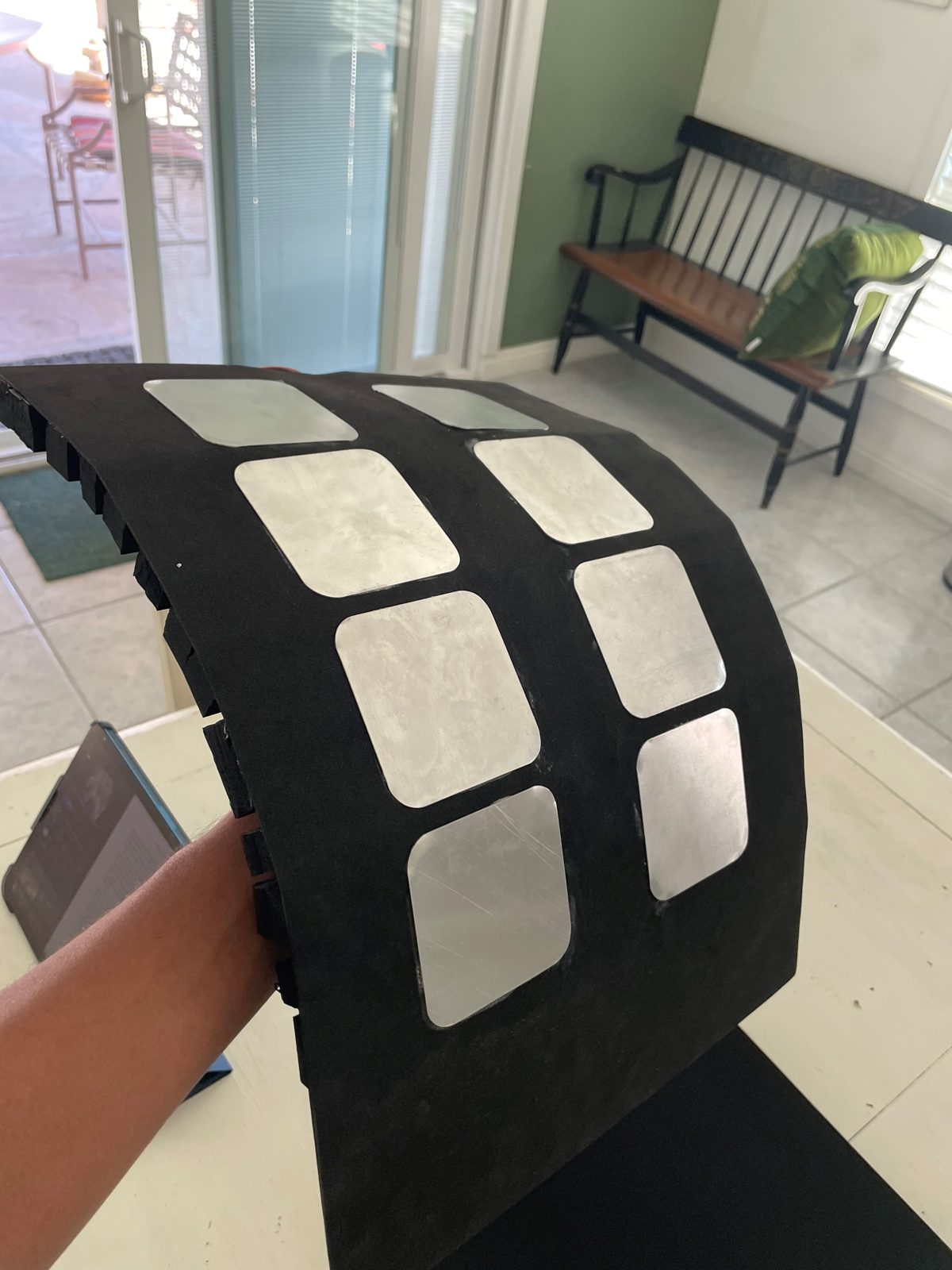

Conductive plates on a flexible body

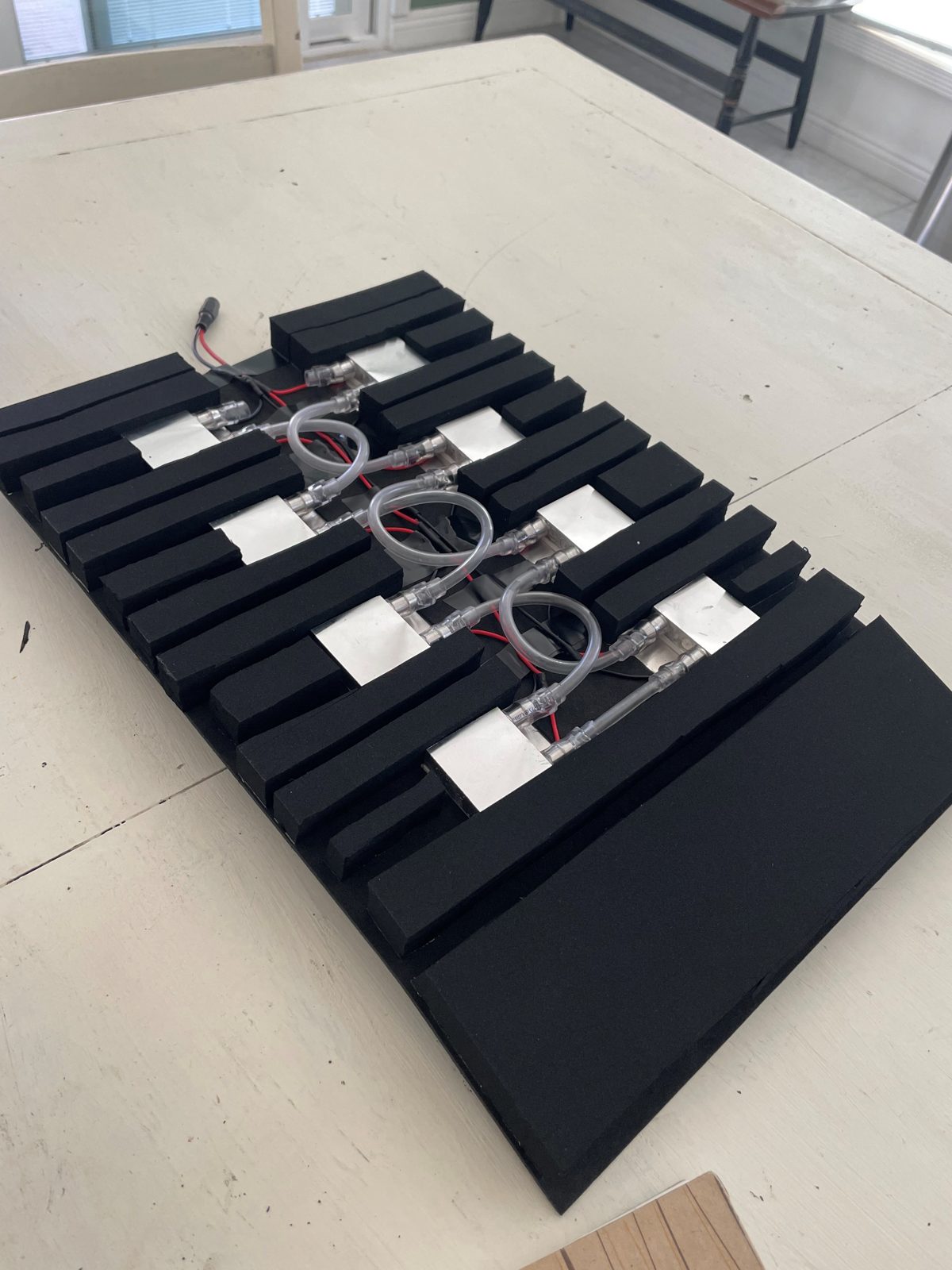

Liquid-cooled modules & series wiring

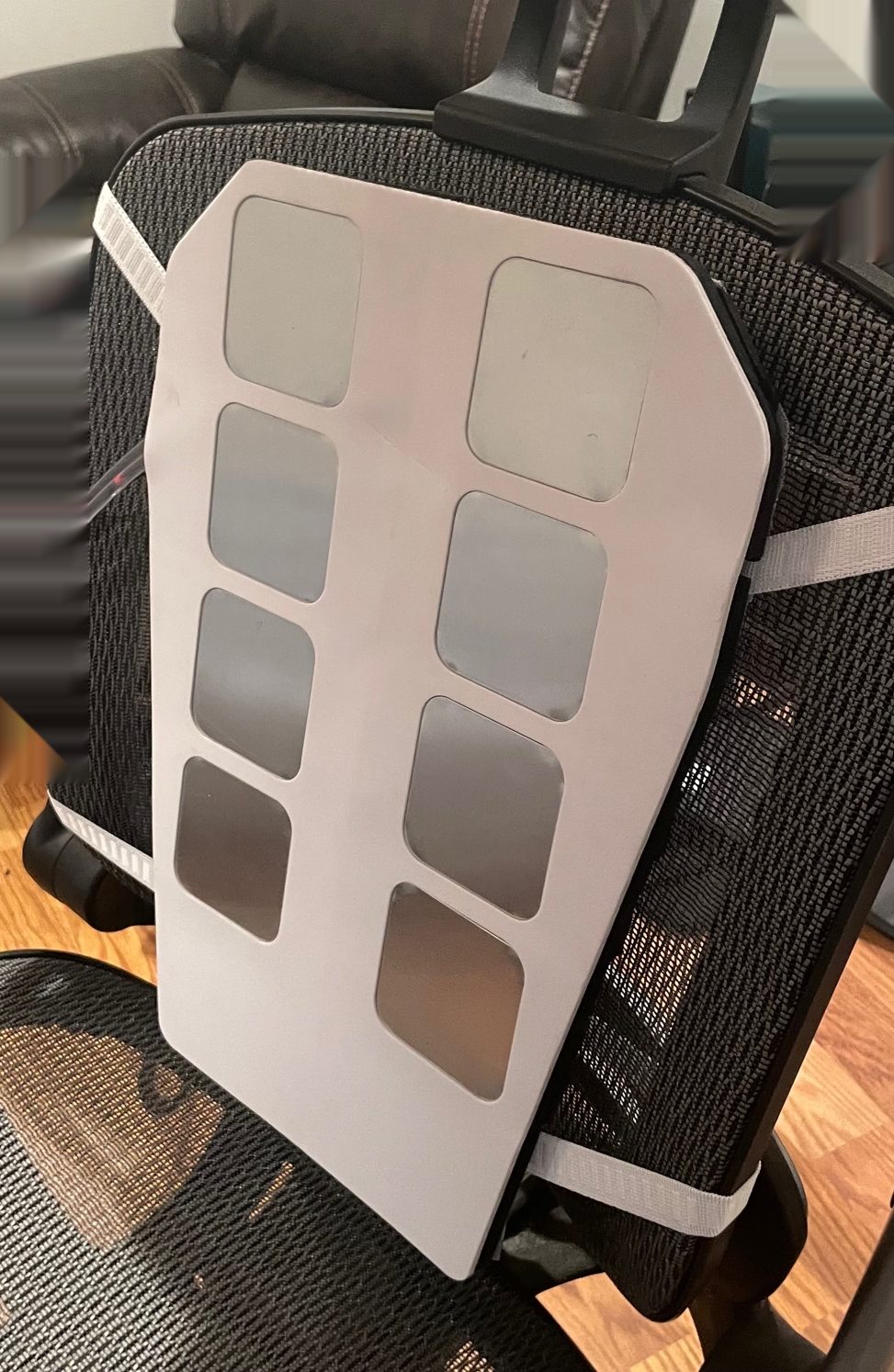

Aftermarket example
